Top 10 PTFE Check Valve Types for Global Buyers
Selecting the right ptfe check valve is rarely a simple catalog decision. Global buyers must compare valve design, pressure rating, temperature range, connection style, and chemical compatibility. A valve that performs well in a clean-water line may fail in an aggressive chemical system. Small details matter, such as seat condition, spring material, flow direction, and sealing performance after repeated cycling.
This guide examines the top 10 PTFE check valve types used across industrial applications. It considers wafer, threaded, flanged, spring-loaded, ball, diaphragm, and other practical configurations. Each type offers specific advantages, but none suits every installation. Pipe size, media viscosity, operating pressure, and maintenance access can change the final choice. Real purchasing decisions should also include factory test reports, material certificates, dimensional drawings, and clear warranty terms. Check the details.
Experienced engineers often review the complete flow system instead of judging a valve by its lining alone. PTFE provides strong chemical resistance, but temperature limits, pressure spikes, and mechanical stress still require careful evaluation. Manufacturer reputation also matters. Reliable suppliers explain limitations, provide traceable documentation, and support inspection before shipment. Some product descriptions remain too general, and that can create avoidable risk. This overview is useful, but it cannot replace application-specific engineering review. Buyers should confirm every critical specification with the supplier and qualified technical personnel before ordering.
PTFE Check Valve Basics: ~260°C Continuous-Service Limit and ASTM D4894

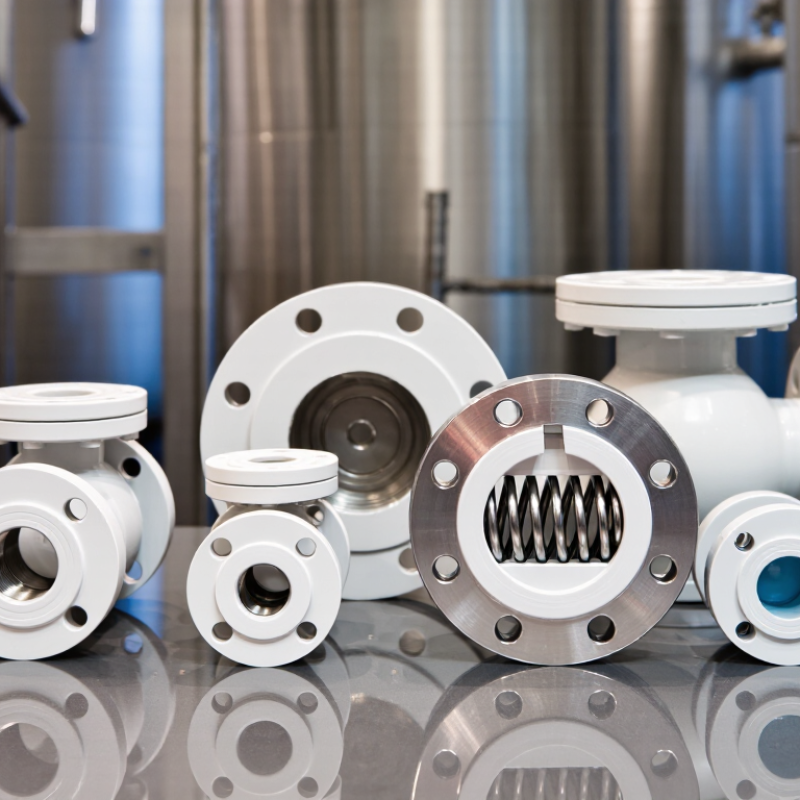

Top 10 PTFE Check Valve Types for Global Buyers
PTFE check valves are often selected for corrosion resistance, clean flow paths, and low friction. Their temperature rating needs careful interpretation. Around 260°C is commonly treated as a continuous-service limit for PTFE, but it is not a universal guarantee. Pressure, cycling frequency, valve geometry, and chemical exposure can reduce the safe operating range. At elevated temperatures, PTFE may creep, soften, or lose sealing force. A valve that performs well during a short test may behave differently after weeks of operation.
ASTM D4894 specifies requirements for PTFE resin used in molding and extrusion applications. It helps buyers evaluate material consistency, but it does not certify a complete check valve. The valve body, seat design, spring, shaft, and pressure rating require separate verification. A practical review should compare the material certificate with the manufacturer’s temperature-pressure curve and actual media conditions. This step is often skipped. It should not be.
Tips:
Ask for the PTFE resin specification, test temperature, pressure limits, and dimensional tolerances. Confirm whether 260°C means continuous operation, brief exposure, or a laboratory limit. Inspect the valve after thermal cycling if reliability matters. Also check reverse-pressure leakage, because high heat can change sealing behavior. Small details matter.
Ten PTFE Check Valve Designs: Lift, Swing, Ball, Diaphragm, and Dual-Plate
Top 10 PTFE Check Valve Types for Global Buyers
Ten PTFE Check Valve Designs: Lift, Swing, Ball, Diaphragm, and Dual-Plate
PTFE check valves suit corrosive fluids, clean processes, and demanding chemical service. Lift designs include piston-lift and poppet-lift valves. They respond quickly, but require suitable flow pressure. Swing designs include full-disc and wafer patterns. Their low resistance helps larger pipelines, although poor installation can cause disc impact. Ball designs use floating or guided balls. They handle dirty liquids well, but trapped particles may affect sealing.
Diaphragm designs include full-diaphragm and weir-diaphragm structures. They isolate moving parts from the medium and support hygienic applications. Dual-plate designs include standard wafer and lug-style configurations. Their short face-to-face length saves space and reduces reverse-flow shock. In field inspections, I check the PTFE seat, hinge movement, bolt alignment, and actual operating temperature. Selection is not always obvious. A compact valve may still perform poorly with pulsating flow.
Tips: Confirm pressure, temperature, line direction, fluid concentration, and installation position before ordering. Check the required cracking pressure, because a sensitive diaphragm valve may not suit every pump system. Request test records, material certificates, and leakage data from the supplier. Keep a small safety margin for temperature and pressure. I have seen specifications change after site testing, so review real operating data before final selection.
Performance Comparison: Pressure, Flow, Leakage, and 0.05–0.20 Friction Range
Top 10 PTFE Check Valve Types for Global Buyers
Performance Comparison: Pressure, Flow, Leakage, and 0.05–0.20 Friction Range
PTFE check valves suit corrosive fluids, clean gases, and demanding chemical lines. Common designs include ball, lift, swing, wafer, dual-plate, diaphragm, spring-loaded, inline, foot, and sanitary valves. Each design changes pressure drop, response speed, and installation flexibility. Ball and diaphragm types often seal gently at low differential pressure. Spring-loaded models respond faster, but their spring adds resistance.
Pressure performance depends on body construction, temperature, connection method, and seat geometry. Do not judge a valve by nominal size alone. A narrow passage can reduce flow and create measurable pressure loss. Swing and dual-plate designs usually support larger flow paths, while compact inline valves save space. Cracking pressure must match the pump’s available differential pressure. Otherwise, the valve may remain closed.
Leakage deserves practical testing. Inspectors should check reverse leakage after cycling, not only before installation. PTFE offers a low-friction surface, commonly measured within the 0.05–0.20 range under defined conditions. This range is not universal. Load, temperature, surface finish, and fluid chemistry can shift the result. Real installations may perform differently.
Small details matter. A clean seat helps.
I would still question any catalogue value without test conditions. Pressure, flow, leakage, and friction should be compared using the same temperature, medium, and test method. That approach gives global buyers a clearer and more defensible selection.
Global Standards Guide: API 594, ASME B16.34, ISO 5208, and ISO 161
For global buyers, PTFE check valve selection should begin with standards, not a catalog photograph. API 594 covers common wafer, lug, and dual-plate check valve requirements. It also supports dimensional and design verification. However, not every PTFE valve fits its scope. Confirm the valve type, pressure class, and service conditions in the technical file. In practice, compare the drawing with the approved piping layout. A small mismatch can create costly alignment work.
ASME B16.34 helps verify pressure-temperature ratings, materials, and basic valve construction requirements. It matters when the valve connects to flanged or welded piping. Do not treat compliance as a universal performance guarantee. PTFE components may have temperature limits below those of the metal body. Check chemical compatibility, cycling frequency, backpressure, and thermal expansion. Cold flow remains a concern. It deserves attention.
ISO 5208 provides a structured method for pressure testing and leakage assessment. Request the test medium, pressure, duration, and measured leakage rate. Do not accept only a pass statement. ISO 161, especially the relevant thermoplastic pipe dimension series, helps confirm compatibility with plastic piping systems. It is not a complete check valve design standard. Measure outside diameters and sealing surfaces after delivery. Record results with photographs and calibrated instruments. One uncomfortable lesson is that paperwork may look complete while installation details remain unclear. Ask for the standard edition and scope before shipment.
Buyer Selection Matrix: Media, DN Size, Pressure Class, Temperature, and Certification
Top 10 PTFE Check Valve Types for Global Buyers
Buyer Selection Matrix: Media, DN Size, Pressure Class, Temperature, and Certification
A practical selection matrix should begin with the media, not the valve shape. For strong acids, alkalis, or high-purity chemicals, PTFE offers useful corrosion resistance. Confirm concentration, solids content, and cleaning chemicals. A clean fluid may suit a wafer, lift, ball, diaphragm, or swing check valve. Slurries need fewer narrow passages. Small DN sizes often favor compact spring-loaded designs. Larger DN sizes may require stronger discs and better support.
Pressure class must match both operating and surge pressure. Do not size from normal pressure alone. A DN50 line at 6 bar can experience sharp spikes when a pump stops. Review cracking pressure, back pressure, flow direction, and installation position. For hot service, check the complete temperature range. PTFE may handle chemical exposure well, yet pressure capability can decline as temperature rises. This detail is easy to miss.
Certification should fit the destination and application. Request pressure-test records, material certificates, and traceability for wetted parts. Depending on the project, relevant requirements may include PED, CE, UKCA, FDA contact suitability, or hygienic documentation. Verify the exact scope. A certificate without the correct DN, pressure class, or material grade proves little. I have seen well-designed valves fail a procurement review because documents were incomplete. The matrix looked finished, but one column was still based on an assumption. A second review is worthwhile.
