How to Choose a Pneumatic Control Valve in 2026?

Choosing a pneumatic control valve in 2026 requires more than comparing prices and connection sizes. The correct selection affects process stability, energy use, maintenance effort, and operator safety. Engineers must match the valve with the fluid, pressure range, temperature, flow rate, and required control accuracy. A valve that looks suitable on paper may perform poorly when exposed to flashing liquid, corrosive chemicals, or rapid cycling.

Real-world conditions matter.

In plant commissioning, small details often become expensive problems. Poorly sized valves may hunt continuously, create noise, or reduce actuator life. Therefore, this guide examines valve type, body materials, trim design, actuator sizing, fail-safe position, air quality, and response speed. It also considers communication options, diagnostic functions, and compatibility with modern process control systems. Technical references, manufacturer data, and recognized engineering practices should support every decision.

However, selection is not always perfectly predictable. Laboratory figures may differ from field performance because piping geometry, vibration, air pressure, and maintenance habits change the result. That uncertainty deserves attention. Buyers should request tested flow coefficients, leakage classifications, pressure-temperature ratings, and documented service limits. They should also verify spare-part availability and local technical support before approval. A reliable pneumatic control valve is not simply the most advanced option. It is the valve that delivers stable control under actual operating conditions, with clear documentation and manageable long-term risks. Careful review prevents costly assumptions.

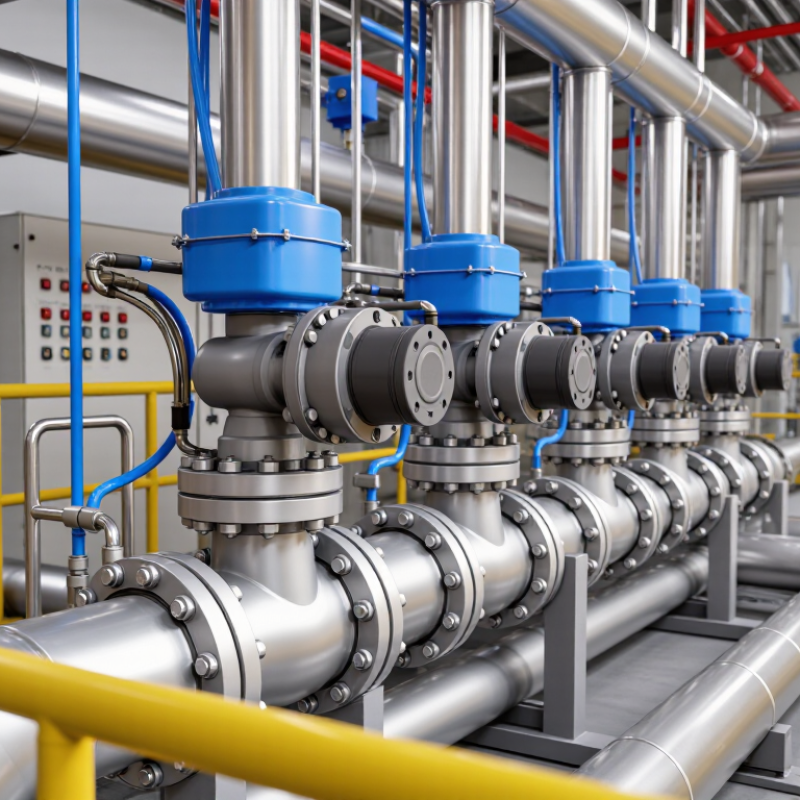

How to Choose a Pneumatic Control Valve in 2026?
Table of Contents [Hide]
1 What Is a Pneumatic Control Valve and How Does It Work?
2 Which Process Conditions Should Guide Your Valve Selection?
3 How to Match Valve Design, Materials, and Actuation Requirements
4 How to Evaluate Control Accuracy, Air Supply, and Safety Features
5 How to Compare Installation, Maintenance, and Lifecycle Costs

What Is a Pneumatic Control Valve and How Does It Work?

A pneumatic control valve regulates fluid flow by converting compressed-air energy into precise mechanical movement. A controller sends a pneumatic signal to an actuator. The actuator then moves the valve plug, ball, or disc against changing process pressure. A positioner compares the requested position with actual movement and corrects errors. Small feedback adjustments matter.

The valve’s fail position deserves careful attention. “Fail open” may protect cooling flow, while “fail closed” may limit hazardous release. Air quality also matters. ISO 8573-1 classifies compressed air by particles, water, and oil; contaminated air can damage seals and positioners.

The 2024 MarketsandMarkets pneumatic control valve report projects continued market growth through 2029, driven by automation in process industries. That growth does not make every valve suitable.

For a 2026 selection, match valve size to calculated flow coefficient, pressure drop, temperature, and medium viscosity. Check actuator torque at the worst operating condition, not only the normal point.

Fortune Business Insights’ 2024 industrial valve market analysis identifies energy, chemical, and water infrastructure as major demand areas. Field experience suggests another practical test: listen for hunting, air leakage, and slow travel during commissioning.

The first choice is rarely perfect. Recheck it. A larger valve can reduce pressure loss, yet it may control poorly near low flow. A smaller valve can improve resolution, but it may create excessive noise or cavitation.

Always verify calculations against the site’s real operating data.

Which Process Conditions Should Guide Your Valve Selection?

How to Choose a Pneumatic Control Valve in 2026?

Which Process Conditions Should Guide Your Valve Selection?

Start with the process, not the valve catalog. Identify the medium, temperature, pressure, flow range, and required shutoff performance. A hot, abrasive slurry demands different materials than clean water. Gas service may require careful attention to compressibility and noise. I have seen valves selected for average flow, then struggle during low-flow operation. That mistake is common.

Check the full operating range. Normal conditions matter, but startup, shutdown, and upset conditions can control the final choice. Calculate pressure drop at minimum and maximum flow. Excessive pressure loss can create noise, vibration, or cavitation in liquid service. Confirm actuator sizing with the highest differential pressure, not the easiest operating point. The fail-open or fail-closed position should match the process hazard. This decision deserves more than a quick checkbox.

Tips: Keep the medium clean and dry when the process allows it. Specify corrosion-resistant trim when chemistry changes. Review valve response time against the control loop. Leave reasonable capacity margin, but avoid oversizing. An oversized valve may hunt at low flow. Also verify available instrument air pressure, ambient temperature, maintenance access, and connection requirements. My own selections have occasionally focused too heavily on datasheets. Field access later proved more important. A valve that performs well but cannot be inspected easily is not a reliable choice.

How to Match Valve Design, Materials, and Actuation Requirements

Choosing a pneumatic control valve in 2026 starts with the process, not the catalog. Identify fluid, flow range, pressure drop, temperature, and required shutoff class. A valve handling clean water may use stainless steel trim and resilient seals. Hot steam requires different body ratings, packing, and gasket materials. Measure twice. Small errors in temperature or pressure can distort material selection and shorten service life.

Match the design to the operating behavior. Globe valves offer precise throttling, while rotary valves save space and reduce weight. For dirty fluids, inspect dead zones, erosion risks, and cleaning access. Calculate required Cv at minimum, normal, and maximum flow. Avoid sizing only for peak flow; oversized valves often hunt near the seat. That creates unstable control. I have seen an oversized selection produce noisy, jerky movement during low-demand periods. The calculation was correct, but the operating profile was ignored.

Actuator selection must follow torque or thrust, supply pressure, cycle time, and failure position. Confirm spring range, air consumption, and instrument air quality. A fail-closed valve may protect equipment, while fail-open operation may protect cooling circuits. Include positioner accuracy, manual override needs, and feedback requirements. Ask for traceable material certificates and documented seat-leakage tests. Check mounting space before ordering. Field access matters. Review corrosion exposure, ambient temperature, and maintenance records with operators. A technically elegant choice can still fail when technicians cannot safely reach the packing or isolate the line.

How to Choose a Pneumatic Control Valve in 2026? - How to Match Valve Design, Materials, and Actuation Requirements

Practical selection guide for matching process conditions, valve construction, materials, sizing, and pneumatic actuation.

Selection Dimension Typical Requirement or Condition Recommended Valve Design Preferred Materials Pneumatic Actuation Guidance Key Verification Point
General throttling service Continuous modulation of liquid, gas, or steam flow Globe control valve with linear or equal-percentage trim Carbon steel for moderate service; stainless steel for corrosive or hygienic media Spring-return or double-acting pneumatic actuator with positioner Confirm required flow characteristic, shutoff class, and available instrument-air pressure
Large pipe size and low-to-moderate pressure drop High flow capacity with compact face-to-face dimensions Butterfly control valve with a characterized disc Ductile iron or carbon steel body; stainless steel shaft; elastomer or metal seat selected for temperature and media Quarter-turn actuator sized for maximum breakaway and dynamic torque Check cavitation, disc velocity, seat compatibility, and torque at the worst operating condition
Clean liquids and gases Low particle loading and stable flow conditions Globe, segmented-ball, or rotary plug control valve Stainless steel trim is commonly suitable; PTFE-based seals may be used within their temperature limits Positioner recommended for accurate modulating control Verify leakage rating, surface finish requirements, and seal temperature limits
Abrasive slurry or solids-bearing fluid Erosive particles, suspended solids, or fibrous material Eccentric rotary plug, segmented ball, or slurry-rated pinch design Hardened alloy or replaceable wear components; reinforced elastomer where compatible High-torque quarter-turn actuator with adequate safety margin Evaluate erosion rate, minimum flow velocity, plugging risk, and maintenance access
Corrosive chemical service Fluid may attack the body, trim, shaft, or sealing system Lined valve, diaphragm valve, or corrosion-resistant rotary valve Alloy or lined wetted surfaces; PTFE, EPDM, or FKM only when chemically compatible Use corrosion-resistant actuator accessories and a sealed position feedback system Check compatibility against concentration, temperature, permeation, and cleaning chemicals
High-temperature steam or gas Elevated process temperature and possible thermal cycling Globe valve with hardened trim or high-temperature rotary valve Heat-resistant steel body and alloy trim; graphite packing where appropriate Separate actuator from heat using an extended bonnet or thermal barrier where required Confirm body, packing, gasket, seat, and actuator accessory temperature ratings
Low-temperature or cryogenic service Very low process temperature with possible atmospheric moisture Cryogenic globe or ball valve with extended bonnet Austenitic stainless steel and low-temperature-rated sealing materials Actuator and accessories mounted outside the cold zone; use dry, clean instrument air Verify minimum design temperature, bonnet length, seat leakage, and icing control
Fast on/off isolation Rapid opening or closing rather than continuous throttling Ball valve, butterfly valve, or rotary plug valve Body and trim selected for pressure, temperature, and media compatibility Quarter-turn spring-return actuator for defined emergency position; double-acting for balanced force and speed Calculate closing time and assess water hammer, surge, and actuator cycling frequency
Fail-safe process protection Valve must move to a safe position after loss of air or control signal Valve design selected according to the required fail-open, fail-closed, or fail-in-place function Materials must remain functional during the emergency temperature and pressure condition Spring-return actuator for fail-open or fail-closed action; lock-up or trip systems for fail-in-place needs Define the safe state through a documented process hazard or safety analysis
High-pressure-drop liquid service Large pressure reduction with risk of cavitation or flashing Multi-stage anti-cavitation trim or specially characterized control valve Hardened trim and erosion-resistant materials for severe service Actuator sized for maximum differential pressure and unbalanced trim force Use pressure and temperature data at minimum, normal, and maximum flow conditions
Gas or vapor flow sizing Compressible flow with possible choked-flow conditions Globe, ball, or butterfly valve selected using a compressible-flow equation Materials selected for gas composition, temperature, pressure, and fugitive-emission requirements Positioner and actuator sized to maintain stable control near the normal operating point Include absolute pressure, absolute temperature, molecular weight, compressibility, and required flow rate
Hygienic or sanitary processing Frequent cleaning, low contamination risk, and drainability Sanitary diaphragm, butterfly, or ball control valve with minimal dead volume Polished stainless steel wetted surfaces and hygienic elastomers Cleanable pneumatic actuator and position feedback suitable for washdown environments Verify surface finish, drainability, cleaning temperature, and applicable sanitary requirements
Instrument-air limitations Low, unstable, or contaminated air supply Low-friction valve and actuator combination with suitable control accessories Corrosion-resistant actuator housing and seals compatible with dry or lubricated air Check minimum and maximum supply pressure, air consumption, stroking time, and filter-regulator capacity Design for the lowest available air pressure, not only the nominal compressor pressure
Positioning accuracy and automation Tight control of pressure, temperature, level, or flow Low-backlash valve with an appropriate inherent flow characteristic Materials selected to minimize friction, wear, and thermal deformation Digital or pneumatic positioner with feedback, travel calibration, and diagnostic capability Check hysteresis, dead band, response time, valve gain, and control-loop stability
Core sizing inputs: flow rate, inlet and outlet pressure, temperature, fluid density or molecular weight, viscosity, vapor pressure, required rangeability, shutoff pressure, allowable noise, and the required fail-safe position.

How to Evaluate Control Accuracy, Air Supply, and Safety Features

How to Choose a Pneumatic Control Valve in 2026?

Control accuracy begins with the process, not the valve catalog. Define the flow range, pressure drop, temperature, and fluid behavior. A valve that performs smoothly at 80% travel may hunt near its minimum flow. Check the required rangeability and select an actuator with enough thrust for worst-case conditions. Positioner feedback should match the process tolerance, not simply provide the highest advertised resolution. Small errors matter.

Air supply deserves equal attention. Measure pressure at the valve during peak demand, not only at the compressor outlet. Moisture, oil, and clogged filters can create slow movement or unstable positioning. Use clean, dry air and size tubing for the actual distance. I have seen a precise valve behave poorly because its supply line was too narrow. The valve was blamed first.

Safety features should fit the failure risk. Confirm whether the valve must fail open, fail closed, or hold position after air loss. A spring-return actuator may improve protection, but it can also increase required air volume. Test the emergency response under realistic pressure and temperature conditions. Include local isolation, travel feedback, and a manual override where maintenance access is difficult. Verify the design against applicable plant procedures and safety standards. Do not assume a factory setting is correct for every installation. Recheck response time after commissioning. My own preference has changed: I now treat air quality and shutdown testing as selection criteria, not maintenance details.

How to Compare Installation, Maintenance, and Lifecycle Costs

How to Choose a Pneumatic Control Valve in 2026?
How to Compare Installation, Maintenance, and Lifecycle Costs

Choosing a pneumatic control valve should begin with total cost, not purchase price. A low-cost valve may require expensive preparation, fittings, or custom supports. During equipment reviews, I compare installation hours, access requirements, and commissioning time. Check whether the actuator needs special tools or additional air treatment. A compact design can reduce labor in crowded pipe racks. It can also make future servicing harder.

Maintenance costs depend on more than replacement parts. Inspect seal quality, corrosion resistance, positioner access, and the availability of service instructions. Ask how quickly technicians can isolate and remove the valve. A valve that needs frequent recalibration may create hidden production losses. Record pressure, temperature, cycling frequency, and air quality before making a decision. Small details matter here.

Lifecycle costing should include energy use, planned overhauls, spare parts, downtime, and disposal. An efficient actuator may use less compressed air during repeated cycling. That saving becomes meaningful across several years. I have seen teams underestimate labor because they counted only scheduled maintenance. Emergency access was ignored. The calculation is never perfectly clean. Use realistic operating data, then test the estimate against similar equipment. If the duty changes later, the cheapest option today may become the most expensive choice. Review the assumptions with operators and maintenance staff, not only with purchasing teams.

How to Choose a Pneumatic Control Valve in 2026?

How to Compare Installation, Maintenance, and Lifecycle Costs

This representative industrial benchmark compares common pneumatic control valve configurations over a 10-year operating period. Costs are shown in USD per valve and include installation, scheduled maintenance, and estimated compressed-air energy consumption. Actual costs vary with valve size, pressure class, process conditions, service frequency, and local labor rates.
